YS710-H-9/0.55-8
$5,200.00
扇葉直徑 :
額定電壓與轉速 :
電機功率與扇葉角度 :
產品介紹

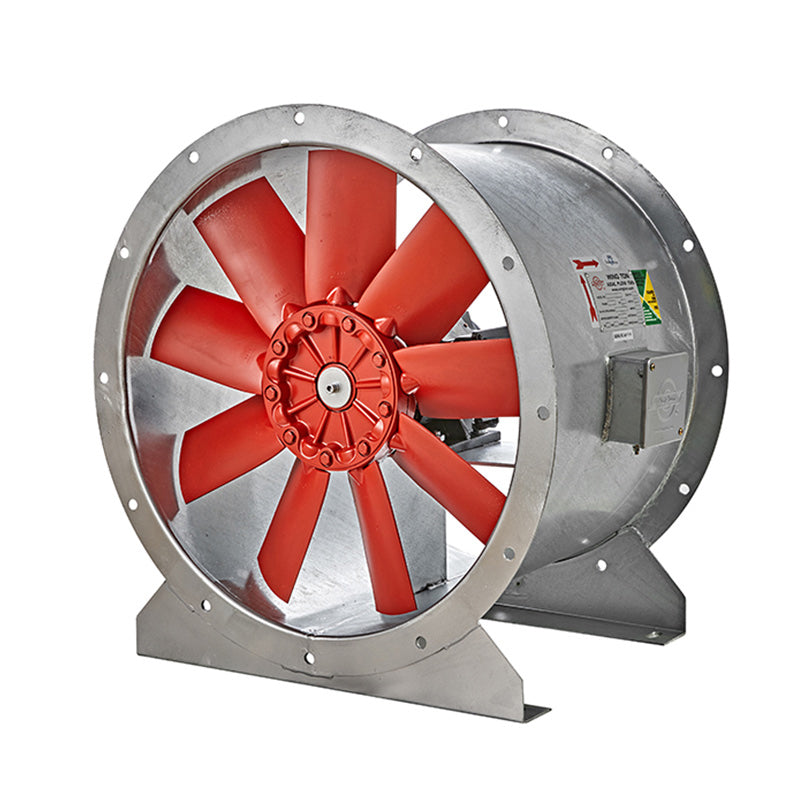

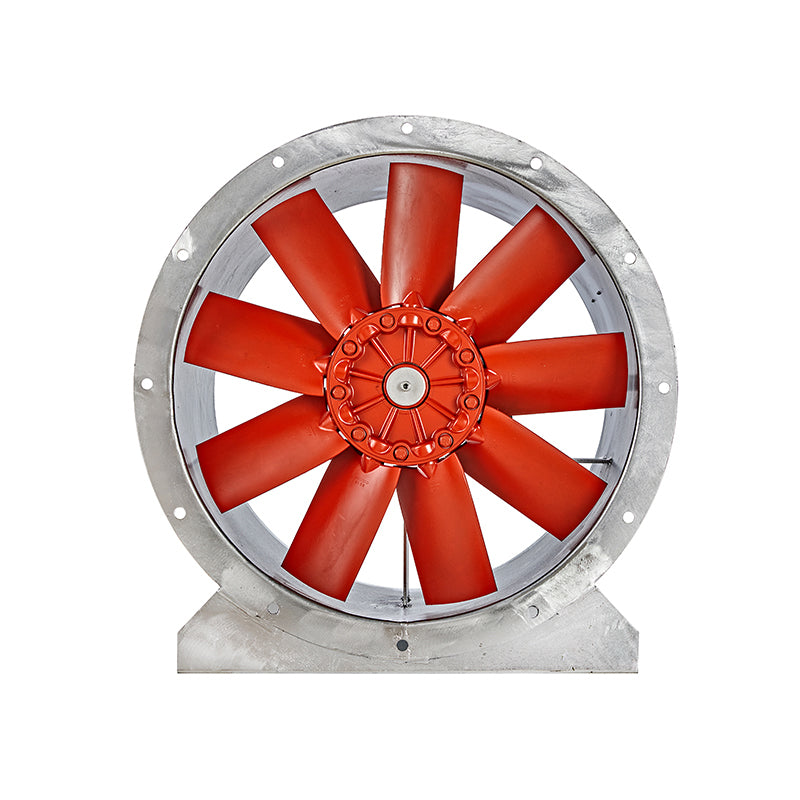

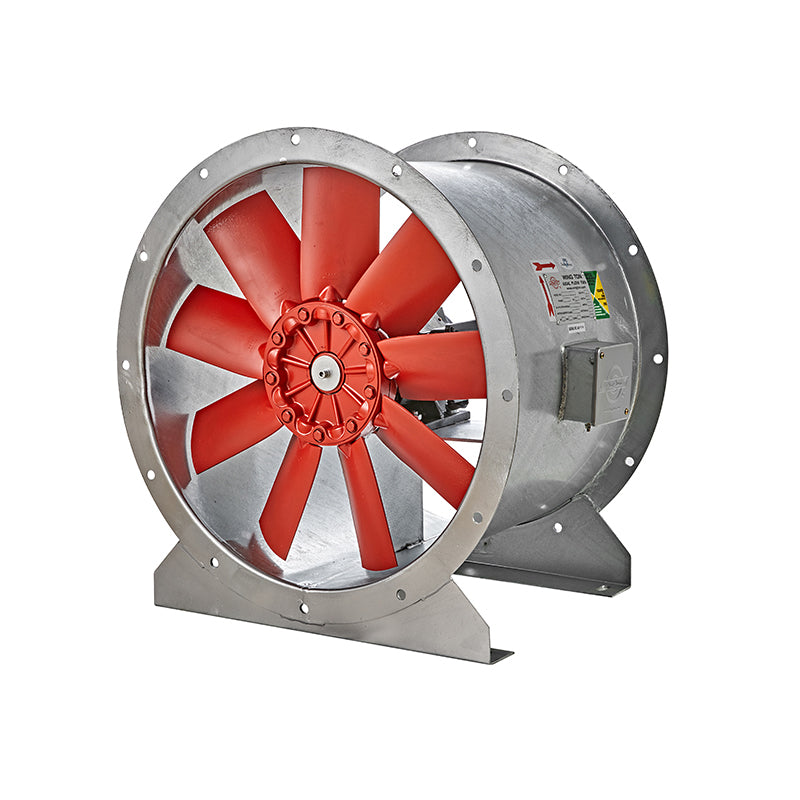

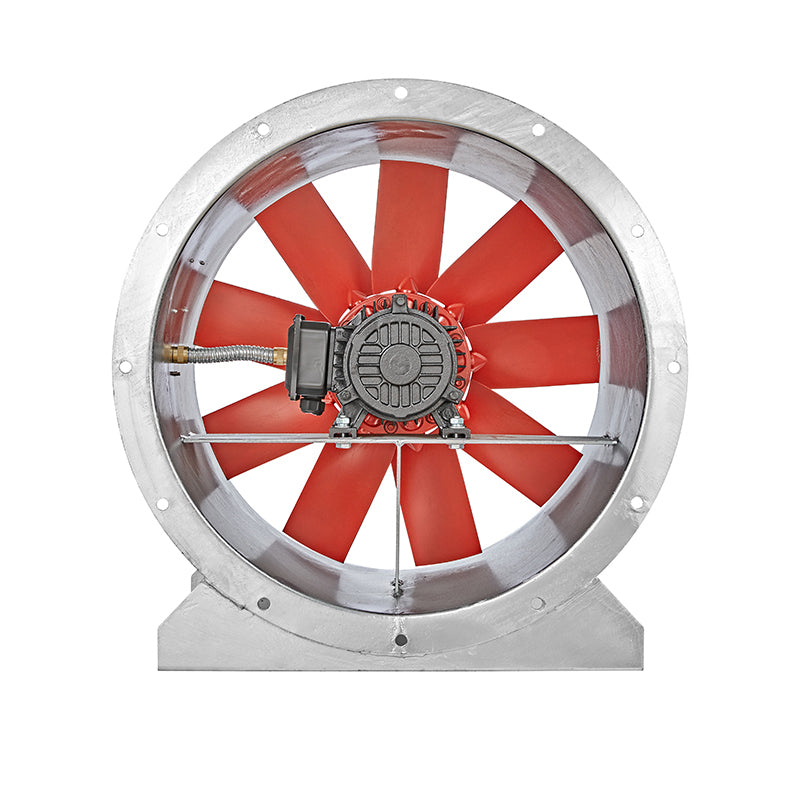

YS系列公制軸流風機（710–1500mm）

備有 315, 355, 400, 450, 500, 560, 630, 710, 800, 900, 1000, 1250, 1500mm 等多款尺寸。所有榮通葉片均為鋁材壓鑄成品，葉片角度可調校，扇葉會進行平衡過程。建議使用溫度：室溫＜40℃，濕度少於95%。馬達多為 IP54/IP55，F 級絕緣。

型號 直徑 電壓 轉速 RPM 扇葉角度 功率 kW 風量 @ 靜壓 噪音 dB(A)
YS710-H-9/0.55-8 710mm 380V / 3Ph / 50Hz 720 32° 0.55 12495 @ 34 61
YS710-H-9/0.37-6 710mm 380V / 3Ph / 50Hz 960 10° 0.37 5780 @ 90 64
YS710-H-9/0.55-6 710mm 380V / 3Ph / 50Hz 960 16° 0.55 7820 @ 100 66
YS710-H-9/0.75-6 710mm 380V / 3Ph / 50Hz 960 22° 0.75 11900 @ 75 67
YS710-H-9/1.1-6 710mm 380V / 3Ph / 50Hz 960 28° 1.1 14960 @ 65 67
YS710-H-9/1.5-6 710mm 380V / 3Ph / 50Hz 960 32° 1.5 16660 @ 60 68
YS710-H-9/1.1-4 710mm 380V / 3Ph / 50Hz 1400 8° 1.1 6500 @ 240 74
YS710-H-9/1.5-4 710mm 380V / 3Ph / 50Hz 1400 14° 1.5 10500 @ 220 74
YS710-H-9/2.2-4 710mm 380V / 3Ph / 50Hz 1400 20° 2.2 15000 @ 210 77
YS710-H-9/3-4 710mm 380V / 3Ph / 50Hz 1400 26° 3 20500 @ 140 77
YS710-H-9/4-4 710mm 380V / 3Ph / 50Hz 1400 30° 4 23000 @ 140 77
YS710-H-9/5.5-4 710mm 380V / 3Ph / 50Hz 1400 32° 5.5 24500 @ 130 78
YS710-H-9/1.1-4-1 710mm 240V / 1Ph / 50Hz 1400 8° 1.1 6500 @ 240 74
YS710-H-9/1.5-4-1 710mm 240V / 1Ph / 50Hz 1400 14° 1.5 10500 @ 220 74
YS710-H-9/2.2-4-1 710mm 240V / 1Ph / 50Hz 1400 20° 2.2 15000 @ 210 77
YS710-H-9/3-4-1 710mm 240V / 1Ph / 50Hz 1400 26° 3 20500 @ 140 77
YS800-H-9/0.55-8 800mm 380V / 3Ph / 50Hz 720 26° 0.55 13770 @ 35 63
YS800-H-9/0.75-8 800mm 380V / 3Ph / 50Hz 720 32° 0.75 17340 @ 26 65
YS800-H-9/0.75-6 800mm 380V / 3Ph / 50Hz 960 14° 0.75 8840 @ 100 67
YS800-H-9/1.1-6 800mm 380V / 3Ph / 50Hz 960 22° 1.1 15640 @ 70 70
YS800-H-9/1.5-6 800mm 380V / 3Ph / 50Hz 960 28° 1.5 19720 @ 50 71
YS800-H-9/1.5-4 800mm 380V / 3Ph / 50Hz 1400 8° 1.5 9000 @ 210 77
YS800-H-9/2.2-4 800mm 380V / 3Ph / 50Hz 1400 14° 2.2 13000 @ 210 77
YS800-H-9/3-4 800mm 380V / 3Ph / 50Hz 1400 20° 3 20000 @ 180 80
YS800-H-9/4-4 800mm 380V / 3Ph / 50Hz 1400 24° 4 26000 @ 120 80
YS800-H-9/5.5-4 800mm 380V / 3Ph / 50Hz 1400 32° 5.5 34000 @ 100 82
YS800-H-9/1.5-4-1 800mm 240V / 1Ph / 50Hz 1400 8° 1.5 9000 @ 210 77
YS800-H-9/2.2-4-1 800mm 240V / 1Ph / 50Hz 1400 14° 2.2 13000 @ 210 77
YS800-H-9/3-4-1 800mm 240V / 1Ph / 50Hz 1400 20° 3 20000 @ 180 80
YS900-H-10/0.55-8 900mm 380V / 3Ph / 50Hz 720 10° 0.55 9180 @ 90 64
YS900-H-10/0.75-8 900mm 380V / 3Ph / 50Hz 720 16° 0.75 12750 @ 80 66
YS900-H-10/1.1-8 900mm 380V / 3Ph / 50Hz 720 22° 1.1 16320 @ 85 67
YS900-H-10/1.5-8 900mm 380V / 3Ph / 50Hz 720 28° 1.5 20400 @ 80 66
YS900-H-10/2.2-8 900mm 380V / 3Ph / 50Hz 720 32° 2.2 23970 @ 70 66
YS900-H-10/1.1-6 900mm 380V / 3Ph / 50Hz 960 8° 1.1 10200 @ 170 69
YS900-H-10/1.5-6 900mm 380V / 3Ph / 50Hz 960 12° 1.5 14280 @ 140 71
YS900-H-10/2.2-6 900mm 380V / 3Ph / 50Hz 960 20° 2.2 19720 @ 145 73
YS900-H-10/3-6 900mm 380V / 3Ph / 50Hz 960 24° 3 23800 @ 140 72
YS900-H-10/4-6 900mm 380V / 3Ph / 50Hz 960 30° 4 29240 @ 145 72
YS900-H-10/5.5-6 900mm 380V / 3Ph / 50Hz 960 32° 5.5 31960 @ 130 72
YS900-H-10/4-4 900mm 380V / 3Ph / 50Hz 1400 10° 4 18000 @ 320 80
YS900-H-10/5.5-4 900mm 380V / 3Ph / 50Hz 1400 16° 5.5 25000 @ 310 82
YS900-H-10/7.5-4 900mm 380V / 3Ph / 50Hz 1400 22° 7.5 32000 @ 320 83
YS900-H-10/11-4 900mm 380V / 3Ph / 50Hz 1400 28° 11 40000 @ 310 82
YS900-H-10/15-4 900mm 380V / 3Ph / 50Hz 1400 32° 15 47000 @ 270 82
YS1000-H-10/0.75-8 1000mm 380V / 3Ph / 50Hz 720 8° 0.75 11220 @ 105 68
YS1000-H-10/1.1-8 1000mm 380V / 3Ph / 50Hz 720 12° 1.1 15300 @ 90 68
YS1000-H-10/1.5-8 1000mm 380V / 3Ph / 50Hz 720 20° 1.5 22950 @ 100 70
YS1000-H-10/2.2-8 1000mm 380V / 3Ph / 50Hz 720 26° 2.2 29580 @ 75 69
YS1000-H-10/3-8 1000mm 380V / 3Ph / 50Hz 720 32° 3 35700 @ 60 69
YS1000-H-10/2.2-6 1000mm 380V / 3Ph / 50Hz 960 10° 2.2 17680 @ 180 75
YS1000-H-10/3-6 1000mm 380V / 3Ph / 50Hz 960 16° 3 25840 @ 170 75
YS1000-H-10/4-6 1000mm 380V / 3Ph / 50Hz 960 22° 4 32640 @ 175 77
YS1000-H-10/5.5-6 1000mm 380V / 3Ph / 50Hz 960 26° 5.5 39440 @ 130 76
YS1000-H-10/7.5-6 1000mm 380V / 3Ph / 50Hz 960 32° 7.5 47600 @ 110 76
YS1000-H-10/5.5-4 1000mm 380V / 3Ph / 50Hz 1400 8° 5.5 22000 @ 400 85
YS1000-H-10/7.5-4 1000mm 380V / 3Ph / 50Hz 1400 12° 7.5 30000 @ 360 85
YS1000-H-10/11-4 1000mm 380V / 3Ph / 50Hz 1400 20° 11 45000 @ 380 87
YS1000-H-10/15-4 1000mm 380V / 3Ph / 50Hz 1400 24° 15 54000 @ 280 87
YS1000-H-10/18.5-4 1000mm 380V / 3Ph / 50Hz 1400 28° 18.5 62000 @ 260 86
YS1000-H-10/22-4 1000mm 380V / 3Ph / 50Hz 1400 32° 22 70000 @ 230 86
YS1250-H-12/3-8 1250mm 380V / 3Ph / 50Hz 720 10° 3 22440 @ 190 74
YS1250-H-12/4-8 1250mm 380V / 3Ph / 50Hz 720 16° 4 35700 @ 160 76
YS1250-H-12/5.5-8 1250mm 380V / 3Ph / 50Hz 720 22° 5.5 44370 @ 170 77
YS1250-H-12/7.5-8 1250mm 380V / 3Ph / 50Hz 720 28° 7.5 56100 @ 140 79
YS1250-H-12/7.5-6 1250mm 380V / 3Ph / 50Hz 960 10° 7.5 29920 @ 340 81
YS1250-H-12/11-6 1250mm 380V / 3Ph / 50Hz 960 18° 11 49640 @ 320 83
YS1250-H-12/15-6 1250mm 380V / 3Ph / 50Hz 960 24° 15 68000 @ 240 85
YS1250-H-12/18.5-6 1250mm 380V / 3Ph / 50Hz 960 28° 18.5 74800 @ 240 86
YS1250-H-12/22-6 1250mm 380V / 3Ph / 50Hz 960 32° 22 81600 @ 260 86
YS1250-H-12/18.5-4 1250mm 380V / 3Ph / 50Hz 1400 8° 18.5 37500 @ 720 90
YS1250-H-12/22-4 1250mm 380V / 3Ph / 50Hz 1400 10° 22 44000 @ 720 90
YS1250-H-12/30-4 1250mm 380V / 3Ph / 50Hz 1400 16° 30 70000 @ 620 92
YS1250-H-12/37-4 1250mm 380V / 3Ph / 50Hz 1400 20° 37 80000 @ 680 93
YS1250-H-12/45-4 1250mm 380V / 3Ph / 50Hz 1400 24° 45 100000 @ 520 94
YS1250-H-12/55-4 1250mm 380V / 3Ph / 50Hz 1400 28° 55 110000 @ 520 95
YS1250-H-12/75-4 1250mm 380V / 3Ph / 50Hz 1400 32° 75 120000 @ 560 95
YS1500-H-12/4-10 1500mm 380V / 3Ph / 50Hz 580 12° 4 45000 @ 115 76
YS1500-H-12/5.5-10 1500mm 380V / 3Ph / 50Hz 580 16° 5.5 54000 @ 105 77
YS1500-H-12/7.5-10 1500mm 380V / 3Ph / 50Hz 580 24° 7.5 78000 @ 60 78
YS1500-H-12/11-10 1500mm 380V / 3Ph / 50Hz 580 32° 11 102000 @ 10 81
YS1500-H-12/7.5-8 1500mm 380V / 3Ph / 50Hz 720 10° 7.5 48750 @ 200 81
YS1500-H-12/11-8 1500mm 380V / 3Ph / 50Hz 720 20° 11 78750 @ 160 83
YS1500-H-12/15-8 1500mm 380V / 3Ph / 50Hz 720 24° 15 97500 @ 90 83
YS1500-H-12/18.5-8 1500mm 380V / 3Ph / 50Hz 720 30° 18.5 120000 @ 30 86
YS1500-H-12/22-8 1500mm 380V / 3Ph / 50Hz 720 32° 22 127500 @ 15 86
YS1500-H-12/15-6 1500mm 380V / 3Ph / 50Hz 960 8° 15 55000 @ 390 88
YS1500-H-12/18.5-6 1500mm 380V / 3Ph / 50Hz 960 12° 18.5 75000 @ 320 88
YS1500-H-12/22-6 1500mm 380V / 3Ph / 50Hz 960 14° 22 85000 @ 290 88
YS1500-H-12/30-6 1500mm 380V / 3Ph / 50Hz 960 22° 30 115000 @ 240 90
YS1500-H-12/37-6 1500mm 380V / 3Ph / 50Hz 960 28° 37 150000 @ 95 93
YS1500-H-12/45-6 1500mm 380V / 3Ph / 50Hz 960 30° 45 160000 @ 50 93
